Swivel Joints
Sino Mechanical offers reliable hard surface, tough core and long service life Swivel Joints for fracturing, cementing, acidizing and testing lines.

Description

Overview of Swivel Joints

Sino Mechanical swivel joints are forged from premium alloy steel, handled with advanced metal melting and heat treatment technology to ensure strength and hardness. Sino Mechanical developed optimum wall thickness for swivel joints based on analysis of weight, resistance to abrasion and blasting.

Swivel joint is a kind of high-pressure fluid control product, which is commonly applied to cementing and fracturing equipment. It is used to change the pipeline connection direction, to make it more convenient and easier to connect the pipe fittings. It is widely used in acid working environments, to connect the high-pressure discharge pipe, suction pipe, temporary flow pipeline, well test line and high-pressure transmission line.

Features of Swivel Joints

1. Repair kit is available for easy maintenance.

2. The technical parameters and performance specifications are in line with API 6A. It can work with SPM’s similar products.

3. Integral design of metal frame plus rubber delivers reliable seal.

4. Made of high strength alloy steel with special heat treatment process.

5. Continuous and uniform wall thickness delivers excellent resistance to erosion and high safety factor.

6. Adopts a unique trajectory, ball structure, to ensure a good rotation swivel joint performance and impact resistance.

7. Integral hardening treatment allows very hard surface and tough core.

8. Multiple seal design and high precision to ensure the sealing performance.

9. Acme threaded connections makes the demolition convenient, fast and reliable.

Applications of Swivel Joints

Fracturing, Cementing, Acidizing, Testing Lines

Price of Swivel Joints

The Swivel Joints Price will change randomly with factors such as production cost, transportation cost, international situation, exchange rate, market supply and demand of raw materials. Sino Mechanical aims to provide you with high quality and best price Swivel Joints. If you are looking for Swivel Joints, please kindly contact us to get the latest Swivel Joints price.

Swivel Joints Supplier

Sino Mechanical, as a Swivel Joints manufacturer, has more than 20 years extensive experiences in the performance, application and cost-effective manufacturing of Swivel Joints. We are global Swivel Joints supplier. We offer a wide range of drilling equipment and have Swivel Joints for sale. We also provide OEM services. We design, manufacture, and sell Swivel Joints for your drilling applications. If you want to know latest Swivel Joints price, don’t hesitate to contact us anytime. We will get back to you within 24 hours.

Specification

Technical Specifications of Swivel Joints

End Connection: Fig 602, Fig 1002, Fig 1502, Fig 2202 or Line Pipe Thread

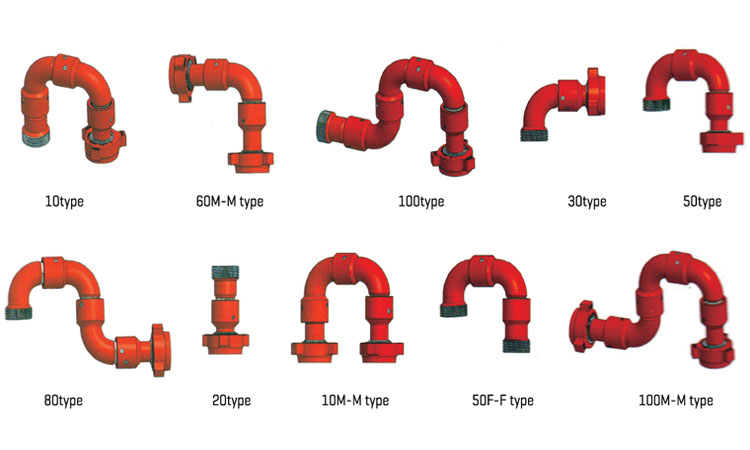

Style: 10, 20, 30, 40, 50, 60, 70, 80, 100

Rated Working Pressure

69.0MPa~138.0Mpa
(10,000psi~20,000psi)

Nominal Size

1 1/2″, 2″, 3″, 4″

Temperature Rating

-29℃~121℃(PU), -46℃~121℃ (LU)

-20℉~250℉ (PU), -50℉~250℉(LU)

Service

Standard, Sour Gas

Application

Fracturing, Cementing, Acidizing, Testing Lines
