Structure of Ram BOP and Its Role in Drilling Operations
BOPs are used on land wells, offshore rigs, and subsea wells. Land and subsea BOPs are secured to the top of the wellbore, known as the wellhead. BOPs on offshore rigs are mounted below the rig deck.
Role of Ram BOP
A Ram Blowout Preventer (BOP) is a critical component in the drilling process that is used to prevent uncontrolled release of oil, gas, or other fluids from the wellbore during drilling, completion, and workover operations.
Ram BOPs help prevent blowout and protect personnel and equipment on the drilling rig. In emergency situations, the ram BOP can be quickly activated to prevent fluid from flowing out of the wellbore and prevent potential catastrophic blowout.

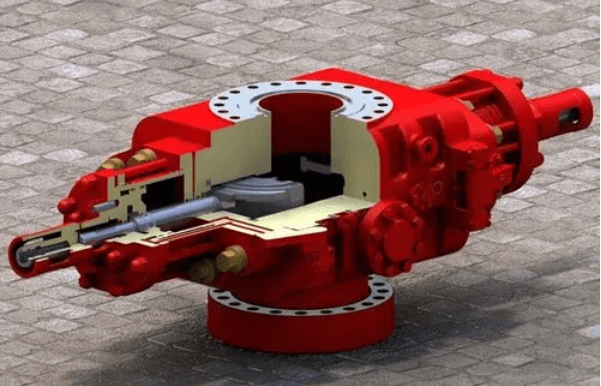

Structure of Ram BOP
A Ram Blowout Preventer (BOP) consists of a robust structure designed to withstand high pressures and effectively seal off the wellbore during drilling, completion, or workover operations. The specific structure of a Ram BOP may vary depending on the manufacturer and design, but here are the key components commonly found in its structure:
Housing: The BOP housing is a large, heavy-duty steel structure that encloses and supports the internal components of the BOP. It provides the structural integrity to withstand high pressures and external forces.
Rams: Rams are the primary sealing elements of the Ram BOP. They are heavy steel blocks or blades that can move horizontally or vertically to close off the wellbore. Rams are designed to fit precisely within the housing and form a tight seal around the pipe or completely block the wellbore in the case of blind rams.
Ram Cavities: The housing contains cavities or chambers where the rams are housed. These cavities are designed to guide the movement of the rams and ensure proper alignment during operation. The number and configuration of ram cavities depend on the specific design and functionality of the Ram BOP.
Ram Actuators: Rams in a Ram BOP are operated using hydraulic actuators. These actuators generate the necessary force to move the rams, either horizontally or vertically, to close off the wellbore. The actuator system typically includes hydraulic cylinders, pistons, and control valves.
Sealing Elements: Rams are equipped with sealing elements to provide a secure seal around the pipe or wellbore. These sealing elements can be made of elastomers or metal-to-metal contact surfaces. They are designed to withstand high pressures and prevent any flow of fluids through the wellbore when the rams are closed.
Hydraulic Control System: The Ram BOP is operated using a hydraulic control system. It consists of hydraulic pumps, control valves, accumulators, and pressure monitoring equipment. The control system regulates the flow of hydraulic fluid to operate the ram actuators and maintain the required pressure for sealing the rams.
Control Panel: A control panel is usually located near the BOP stack, allowing well control personnel to monitor and operate the Ram BOP. It provides controls, gauges, and indicators for hydraulic pressure, ram position, and other operational parameters.
Connections and Flanges: The Ram BOP is equipped with various connections and flanges to facilitate its installation and integration into the wellhead or BOP stack. These connections allow for the attachment of other components, such as choke and kill lines or hydraulic hoses.
The structure of a Ram BOP is designed to be robust, reliable, and capable of withstanding extreme conditions encountered in drilling and well control operations. It plays a critical role in ensuring wellbore integrity and preventing the uncontrolled release of fluids.
