10 Advantages of Sino Mechaical Rotary Drilling Rigs

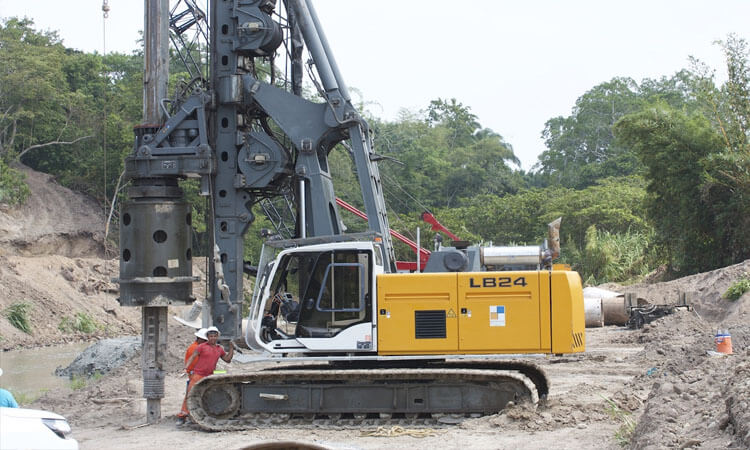

What is a rotary drilling rig?

Rotary drilling rigs utilise high levels of torque and rotation, with a drill bit at the end of the drill pipe rapidly rotating (between 50 and 120rpm) and boring through the rock formation. The drill bit tends to come in two primary forms: firstly, roller-cone bits, and secondly, fixed cutter bits.

Sino Mechanical's rotary drilling rigs enhances quality and productivity with  rigs. Produced in China, our machines are built in state-of-the-art production facilities and to the highest quality allowing fabrication to last through multiple repowers. Sino Mechanical has a long history with designing and manufacturing main structures of  rotary drilling rigs putting our rotary drilling rigs at the top of their class.

Features of rotary drilling rig

(1) Easy to move and highly maneuverable.

The chassis of the rotary drilling rig adopts the chassis of a crawler excavator, which can walk by itself and accurately locate the drilling hole. In addition, the rotary drilling rig can work independently. The rotary drilling rigs has strong mobility and can adapt to complex terrain. The installation and disassembly of the rotary drilling rig can be completed without auxiliary facilities. The rotary drilling rigs takes up little space and can be operated against a wall.

(2) The construction site is environmentally friendly and clean.

The rotary drilling rig uses the drill bit to excavate the soil, and the drill rod lifts the drill bit out of the hole and then unloads the soil. The amount of mud used by the rotary drilling rig is very small and is only used for wall protection, not for slag discharge. The mud used to form the hole is basically equal to the volume of the hole, and the mud can be used repeatedly after sedimentation and sand removal. Therefore, the construction site of the rotary drilling rig is clean and tidy. The pollution caused to the environment is small, and the construction cost is reduced.

(3) The hole forming speed is fast.

It turns out that traditional circulation drilling rigs or percussion drilling rigs are mostly used in the construction of foundation piles, and the production efficiency is very low. However, if the rotary drilling rig is used, the drilling speed is fast because the drill bit directly extracts the rock and soil from the hole. There is less sediment at the bottom of the hole, and it is easy to clean the hole. Therefore, the quality of the project has been fully guaranteed.

(4) The verticality of the hole is high.

The rotary drilling rig chassis is retractable and self-levelling. The verticality of the drilling tower and the drilling depth are displayed by instruments. Therefore, it is very stable when drilling, which can effectively ensure the verticality of the drilling hole and improve the drilling quality.

(5) Strong geological adaptability.

The connection between the drill bit and the drill pipe is fixed with a shaft pin, and the drill bit is easy to disassemble. The drill bit can be quickly replaced for different formations. There are three main types of drill bits for rotary drilling rigs, namely short auger bits, dredging bits, and sand dredging bits.

(6) The equipment has advanced performance, high degree of automation and low labor intensity.

The rotary drilling rig is a crawler-type fully hydraulic self-propelled drilling rig with a complete hydraulic system. Some are also equipped with advanced computer operating systems. In order to ensure the excellent performance of rotary drilling rigs, most rotary drilling rig manufacturers purchase parts and components worldwide. American Caterpillar (CAT) chassis, German hydraulic system, Japanese electrical appliances, etc. This prolongs the overall life of the rotary drilling rig. It will not affect its use due to the damage of a certain part. The integration of rotary drilling rigs, electricity and hydraulics is highly concentrated. It has a compact structure and is flexible and convenient to operate. High degree of mechanization and automation. It can move by itself in the construction site. Self-supporting mast, convenient and quick to move and align holes. The use of telescopic drill pipes saves manpower and time for connecting drill pipes. The auxiliary time is less and the time utilization rate is high.

(7) Easy to use and easy to maintain.

The main components of the rotary drilling rig are provided by the more common original component manufacturers (such as pumps, engines, motors, reducers, etc.). Accessories can be directly supported by the after-sales service of the manufacturer in the place of origin. At the same time, the rotary drilling rig has a simple structure and an extremely low failure rate.

(8) The orifice drops mud and produces less sediment.

Rotary drilling rigs use underwater conduits to pour concrete. This is a very mature pile filling process. It can avoid the adverse effects caused by mud dropping at the orifice and sediment generated during the pouring process.

(9) Applicable to various pile foundation projects.

In addition to being used for rotary drilling, the rotary drilling rig can also be used for construction such as long spirals and underground diaphragm walls. The scope of application is extremely wide.

(10) The hole backfill has less influence on the bored pile.

Rotary drilling rigs are generally equipped with an orifice casing of about 2m (if the backfill soil at the orifice is thicker, it can be lengthened). And the rotary drilling rig itself can bury the casing. In this way, the influence of the hole backfill on the bored pile can be avoided as much as possible.

What are the major components of a rotary rig?

The basic rotary drilling system consists of four groups of components – the prime movers, hoisting equipment, rotating equipment and circulating equipment – that all combine to make rotary drilling possible.

What is the main application of a rotary rig?

Rotary drilling rigs use drilling muds to lubricate, cool and clean the drilling bit, control down hole pressures, stabilize the hole wall and remove drill cuttings, thus allowing better penetration rates and higher operational efficiency.

Types of rotary drill rig

We can design and produce rotary drilling rigs as per your requirements.

Not sure which Sino Mechanical rotary blasthole drill rig fits your requirements? The types of rotary drill rig can help guide you to a solution.

1. Rotary Drilling Rig SINOM60

Overall height: 11.1m

Max. drilling diameter: 1m

Max. drilling depth: 20m

Features of Rotary Drilling Rig SINOM60

(1) Utilizing mature excavator undercarriage. Enhancing the reliability of drilling rig.

(2) The drilling rig can be transported with drill pipe and power head. And there is no need for disassembling before transportation.

Technical Specifications of Rotary Drilling Rig SINOM60

2. Rotary Drilling Rig SINOM200

Overall height: 21.2m

Max. drilling diameter: 1.8m

Max. drilling depth: 64m

Features of Rotary Drilling Rig SINOM200

(1) Suitable for civil construction and piling projects.

(2) Main winch features high pull force and speed. And the rotation speed of rotary head is high. This will provide excellent working efficiency.

(3) Heavy-duty retractable crawler undercarriage coupled with double cylinder luffing mechanism ensures the high stability and reliability.

(4) Our rotary drilling rig is equipped with Fault self-diagnosis and alarm. Rreal-time display of drilling parameters. Control unit with one-button locking. Providing guaranteed operation safety.

(5) Wireless remote control is optional to achieve remote control of travelling and luffing. This will helps to keep operator safe while giving a wider visibility for special working conditions.

Technical Specifications of Rotary Drilling Rig SINOM200

3. Rotary Drilling Rig SINOM300H

Overall height: 24.8m

Max. drilling diameter: 2.5m

Max. drilling depth: 95m

Features of Rotary Drilling Rig SINOM300H

(1) Power head adopts 3 sets of gear reduction motor. Delivering high torque, high rotation speed and strong piling capability.

(2) High strength mast material, double cylinder luffing mechanism and heavy-duty retractable crawler undercarriage. Ensuring high anti-fatigue effect and extended service life.

Technical Specifications of Rotary Drilling Rig SINOM300H

4. Rotary Drilling Rig SINOM450V

Overall height: 31m

Max. drilling diameter: 3m

Max. drilling depth: 121m

Features of Rotary Drilling Rig SINOM450V

(1) Single-layer winding of steel rope on a large-diameter drum for minimal rope wear. Increasing 50% of rope life.

(2) Hidden type outrigger leg is located at bottom part of the mast. And it not only can enhance the stability during drilling but also facilitate daily maintenance of undercarriage.

Technical Specifications of Rotary Drilling Rig SINOM450V

5. Rotary Drilling Rig SINOM550H2

Overall height: 35.3m

Max. drilling diameter: 3.5m

Max. drilling depth: 135m

Features of Rotary Drilling Rig SINOM550H2

(1) Main and auxiliary winches are mounted on the uppercarriage. Our rotary drilling rig features compact structure and ensuring high stability.

(2) Operating data can be synchronously transmitted through mobile phone APP (cloud platform). And the equipment status can be monitored via monitoring camera any time.

Technical Specifications of Rotary Drilling Rig SINOM550H2

6. Rotary Drilling Rig SINOM600

Overall height: 36.3m

Max. drilling diameter: 3.5m

Max. drilling depth: 145m

Features of Rotary Drilling Rig SINOM600

(1) Optimized hydraulic circuit arrangement contributes in reduced pressure loss and expanded space for easy maintenance.

(2) Wide functional expansibility. Our rotary drilling rig can achieve multiple functions in one machine, such as continuous flight auger (CFA) pile construction, belled pile construction, large-diameter variable-section pile construction. And it can be retrofitted to a DTH drilling rig with swivel joint to execute ultra large diameter deep hole reverse circulation drilling.

Technical Specifications of Rotary Drilling Rig SINOM600

Price of Rotary Drilling Rig

The Rotary Drilling Rigs Price will change randomly with factors such as production cost, transportation cost, international situation, exchange rate, market supply and demand of raw materials. Sino Mechanical, as one of global Rotary Drilling Rigs manufacturers, aims to provide you with high quality and best price Rotary Drilling Rigs. If you are looking for Rotary Drilling Rigs or Rotary Drilling Rigs components, please kindly contact us to get the latest Rotary Drilling Rigs price.

Supplier of Rotary Drilling Rig

Sino Mechanical, as a Rotary Drilling Rigs manufacturer, has more than 20 years extensive experiences in the performance, application and cost-effective manufacturing of Rotary Drilling Rig and Piling Machinery. We are global Rotary Drilling Rigs supplier and have Rotary Drilling Rigs for sale in stock. We offer a wide range of drilling equipment and have Rotary Drilling Rig for sale.

For decades, customers have counted on us to develop the most durable rotary drilling rigs on the market. With every Sino Mechanical machine we engineer, we prioritize safety and reliability, and apply the right technology for each application. We don’t just supply equipment. We provide peace of mind that your business will keep moving.

We also provide OEM services. We design, manufacture, and sell Rotary Drilling Rig and Piling Machinery for your drilling applications. If you want to know Rotary Drilling Rigs price recently, don't hesitate to contact us anytime. We will get back to you within 24 hours.
