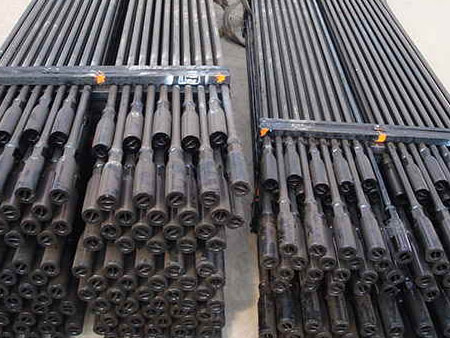

Overview of Sucker Rods

The sucker rod is a slender rod of the pumping well, it is connected to the polished rod on the top, and the pump is connected to the bottom to transmit power. The length of a single sucker rod is 7.62 or 8 meters, 9.14m, and the material is generally low-carbon alloy steel after quenching and tempering treatment. They are connected one by one with internal threaded hoops in the oil pipe and extend to the piston at the underground oil layer. Reciprocating motion to pump oil.

The length of the sucker rod, in addition to the most common 8-meter-long sucker rod, there are five lengths of 1.0 m, 1.5 m, 2.5 m, 3.0 m, and 4.0 m that are specially processed for combination. There are two kinds of domestic sucker rods, one is carbon steel sucker rod, the other is alloy steel sucker rod, carbon steel sucker rod is generally made of No. 40 high-quality carbon steel, alloy steel sucker rod is generally Made of 20 gauge chrome molybdenum steel or 15 gauge nickel molybdenum steel.

As a sucker rod manufacturer, our steel sucker rods, and pony rods are manufactured to the highest quality standards to ensure reliable, consistent operation in every well application.

Sino Mechanical's product range includes high-strength API steel sucker rods designed for both vertical and horizontal wells. All our rods adhere to the stringent API 11B standards, guaranteeing quality, reliability, and compliance with industry benchmarks.

Features of Sucker Rods

1. The sucker rod transmits torque through the fork interface of the rod body, and the connecting thread only bears tension, so it has a good anti-tripping effect.

2. The sucker rod is made of 35CrMo high-quality alloy steel base material, and the two ends of the rod body are formed by upsetting and forging, so there are no welding areas and roughness.

3. Adopting the whole rod quenching and tempering and straightening new technology, the strength of each part is uniform and the straightness is good.

4. Sucker rods are used in multiple artificial lift applications, including rod lift and progressing cavity pumps.

5. Designed and manufactured according to API spec 11B.

6. Able to supply sucker rod in different grades.

7. Threads are processed as to ensure high precision, reliable performance and extended service life.

8. Available in 5/8″ (15.88mm), 3/4″ (19.05mm), 7/8″ (22.23mm), 1″ (25.40mm), and 1-1/8″ (28.58mm) body diameter.

Types of Sucker Rods

1. Ordinary sucker rod: C, D, K, KD grade sucker rod

2. High-strength sucker rod: H grade, divided into three types: HY, HL, KHL

3. Special sucker rod: hollow sucker rod: steel rod

4. Continuous sucker rod: steel rod

5. Screw pump special sucker rod: tapered thread sucker rod, plug-in sucker rod

6. FRP Sucker Rod: Fiber Reinforced Plastic Sucker Rod

7. Flexible sucker rod: carbon fiber composite sucker rod, wire rope sucker rod

8. Other types of sucker rod: electric heating sucker rod

Sucker Rods Supplier

Sino Mechanical is an API-certified supplier that offers a variety of sizes and specifications of OCTG (Oil Country Tubular Goods) for the oil and natural gas industry. As a Sucker Rods manufacturer, Sino Mechanical has more than 20 years extensive experiences in the performance, application and cost-effective manufacturing of Sucker Rods. We offer a wide range of drilling equipment and have Sucker Rods for sale. We also provide OEM services. If you want to know latest Sucker Rods price , don’t hesitate to contact us anytime. We will get back to you within 24 hours.

Sino Mechanical goes beyond delivering products; we provide unparalleled engineering support. Our team conducts critical analyses to address challenges such as heavy side loading and severe corrosion environments. With our expertise, you can trust us to guide you towards the optimal solution for your unique operational needs.

Choose Sino Mechanical for Sucker Rods that redefine reliability, efficiency, and longevity. Elevate your well performance with our cutting-edge solutions tailored to meet the demands of the oil and natural gas industry.

Price of Sucker Rods

The Sucker Rods Price will change randomly with factors such as production cost, transportation cost, international situation, exchange rate, market supply and demand of raw materials. Sino Mechanical aims to provide you with high quality and best price Sucker Rods. If you are looking for Sucker Rods, please kindly contact us to get the latest Sucker Rods price.

Sino Mechanical employs state-of-the-art sucker rod taper designs to ensure improved performance while minimizing rod string weight. We understand the significance of efficiency in your operations and strive to provide solutions that exceed expectations. Contact now to get a free quote!
